Icab Assemblies

Girder-pole Assembly (Asm1)

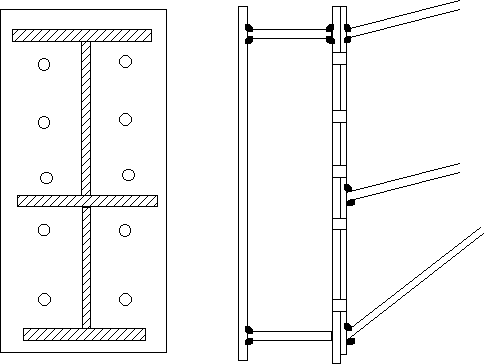

 assembly poute-post (asm1.gif 6165 bytes) The module "Assembly Beam - Post" makes it possible to check the resistance of embedding of a beam on a post. The beam and the post are of type I, H or PRS. The post is stiffened by two horizontal plates in the prolongations superior of the beam and inferior of the beam, possibly with a lower stiffnener. For a bolted assembly, the beam is welded onto a plate which comes to be jointed against a flange of the post. The geometry of the post and the beam, in particular with or without stiffener is defined by the choice that the user chose during the capture of the elements forming the beam and the post.







Assembly Foot of Post (Asm2)

The module "Assembly Foot of Post" makes it possible to check the strength of the assemblies intended to fix the feet of post on a base block anchored in a concrete block by rods. The geometry of the post is defined by the choice that the user chose during the capture of the elements forming the post.

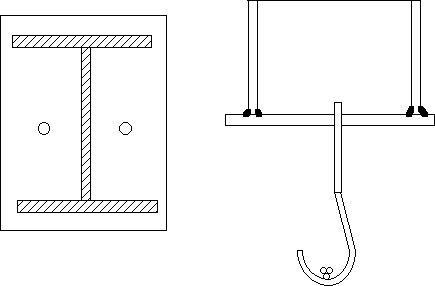

pied de poteau articulé (asm_f1.gif 3734 octets)

The foot of post can be articulated or embedded.

Configuration

Applications ICAB assemblies are a whole of functionalities which are added to software ICAB Force.
